Basic Boat Info
Dimensions
Engines / Speed
- Make: Beta
- Rope Cutter: true
- Model: Marine BD 1005
- Drive Type: Direct
- Fuel: Diesel
- Engine Power: 28hp
- Type: Inboard
- Propeller Type: 3 Blade, Bronze
- Year: 2010
- Engine Hours: 1450
Other
Contact
Office
Castle Emplacement St Peter Port
Guernsey, GB, GY1 1AU
Tel:+44 (0)1481 716880
In this case we are acting as Brokers only. The Owner is not selling in the course of a business. Whilst every care has been taken in their preparation, the correctness of these particulars is not guaranteed. The particulars are intended only as a guide and they do not constitute a term of any contract. A prospective Purchaser is strongly advised to check the particulars and where appropriate at his own expense to employ a qualified Marine Surveyor to carry out a survey and/or to have an engine trial conducted which if conducted by us shall not imply any liability for such engine on our part.
- Length overall (including bowsprit): 38’0” (11.60 M)
- Length overall (excluding bowsprit): 27’0” (8.22 M)
- Waterline length: 25’4” (7.72 M)
- Beam: 9’4” (2.84 M)
- Draft: 5’3” (1.60 M)
- Displacement: 7000 Kg
- Diesel: 21 Gal (96 Lt)
- Fresh water (2 tanks – forward cabin tank new in 2020): 38 Gal (174 Lt)
- Waste: 7 Gal (45 Lt)

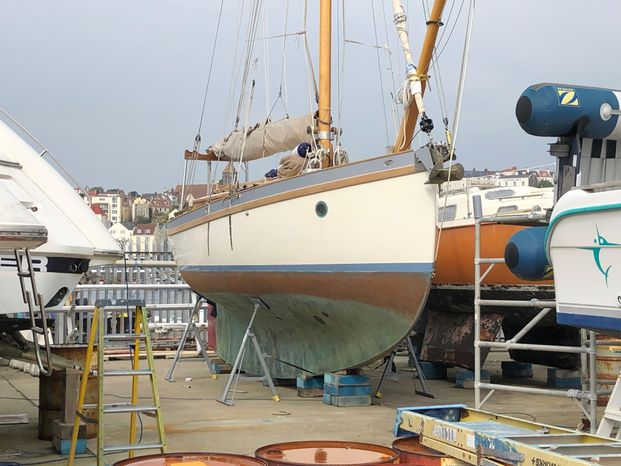

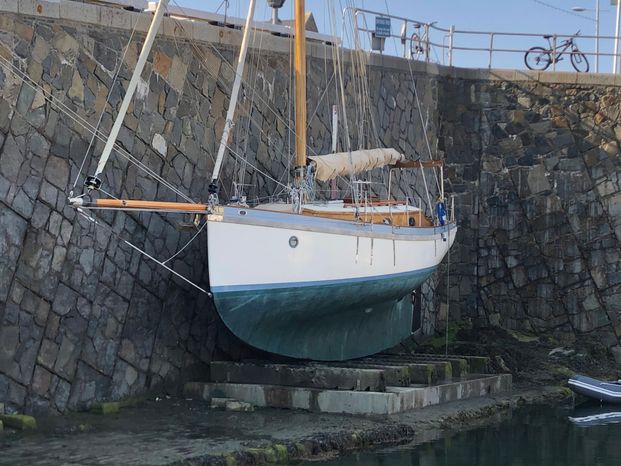

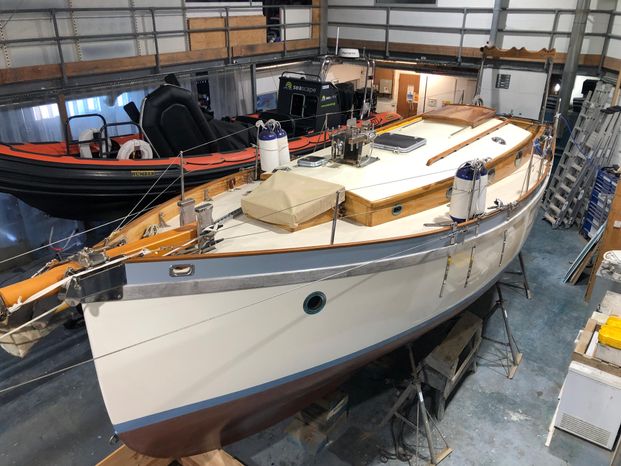

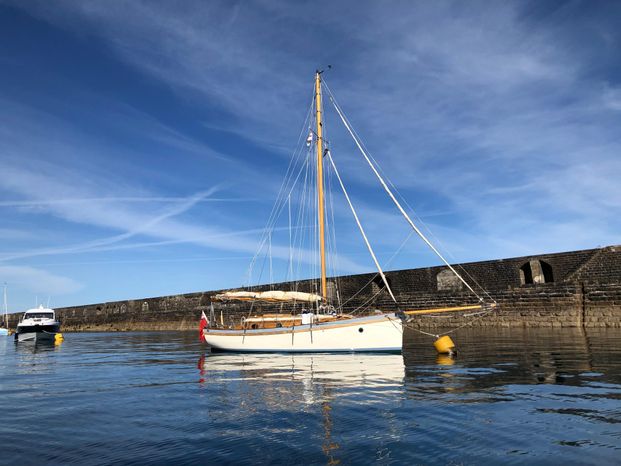

- Heavy duty traditional long keel GRP hull, moulded by Buccaneer Boats in Cornwall, with encapsulated lead ballast

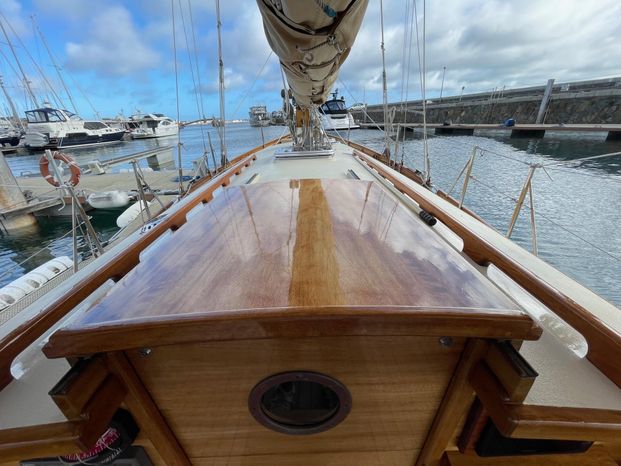

- Fitted out by her first owner, cabinet maker Jonathan March, who designed and built the marine plywood epoxy sheathed decks and iroko coachroof / cockpit coamings
- Iroko bulwarks and teak rubbing strakes
- Decks finished with 2 pack polyurethane and non-slip paint
- Marine plywood / iroko interior finished to a very high standard, with great attention to detail
- Transom hung rudder with folding boarding steps, lifting tiller and central locking mechanism

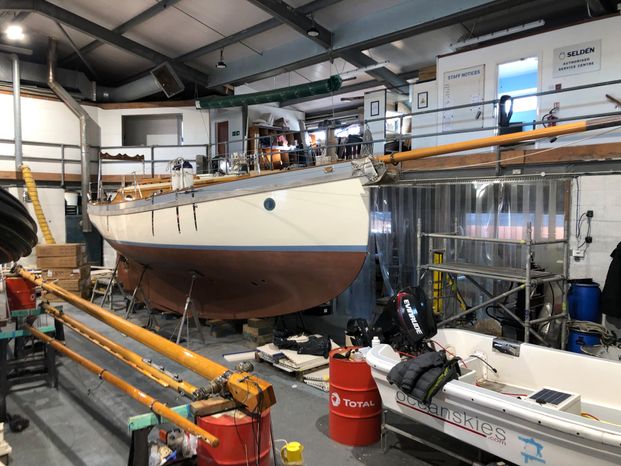

- Hull Coppercoated from new and re-coated in 2023
- 28 hp Beta Marine BD1005 3-cylinder diesel engine (#YY2260) driving 3 bladed “Axiom” bronze propeller via PRM gearbox, Aquadrive coupling (2020) and s/s shaft
- Rope cutter

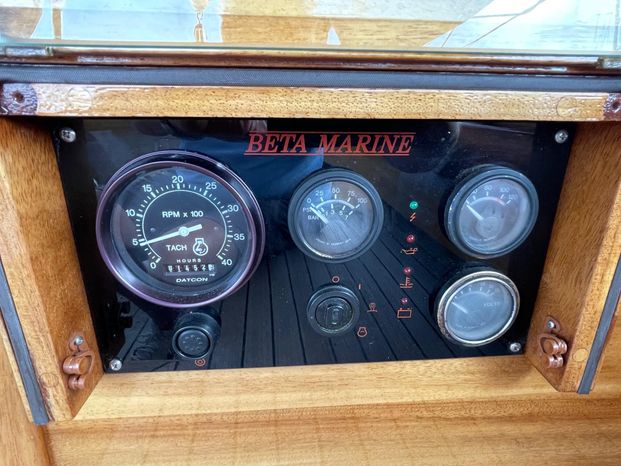

- Full engine instrumentation (1452 hours) and single lever control
- Wema fuel and water tank gauges

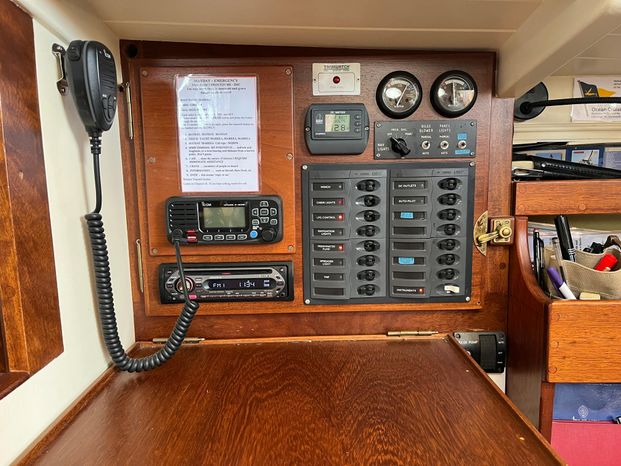

- 12 volt DC electrical system (4 x 90 Amp domestic batteries and 1 x engine battery - 2020) charged by 100 Amp alternator with smart controller, isolator switches, circuit breaker protection, BEP 600-DCM Matrix DC Monitor and cabin / cockpit sockets
- 220 Volt AC shore power with mains circuit breaker, cabin sockets and Sterling Ultra 20 Amp battery charter (2019)
- Pressurised hot and cold fresh water system (30 Lt calorifier / immersion) with taps in galley and heads compartment
- Black water holding tank under the heads compartment sole with Tank Watch gauge (never used and subsequently flushed / dried out in 2022)
- All pipework in heads compartment replaced in 2019 / 2020
- Electric pump with diverter valve for pumping out heads compartment wash hand basin and anchor chain locker below forward cabin sole
- Automatic electric bilge pump (2020)
- Quick electric anchor windlass with remote control, chain counter and cover
- Automatic electric bilge pump (2020)

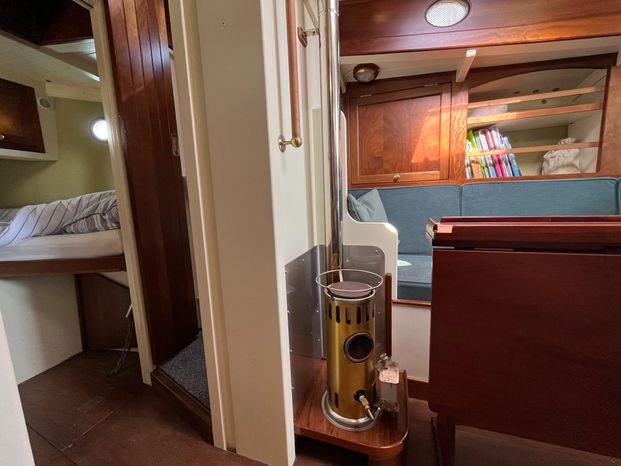

- Reflexs polished brass diesel cabin heater with s/s chimney flue (2021)
- Gas alarm in galley
- Kidde Carbon Monoxide alarm
- Sony stereo radio / CD player with cabin speakers

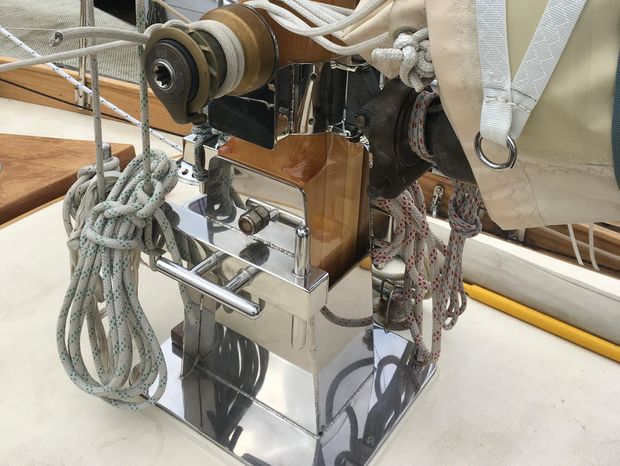

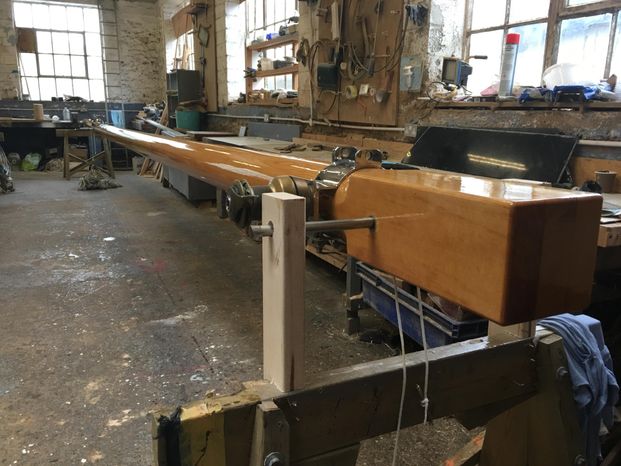

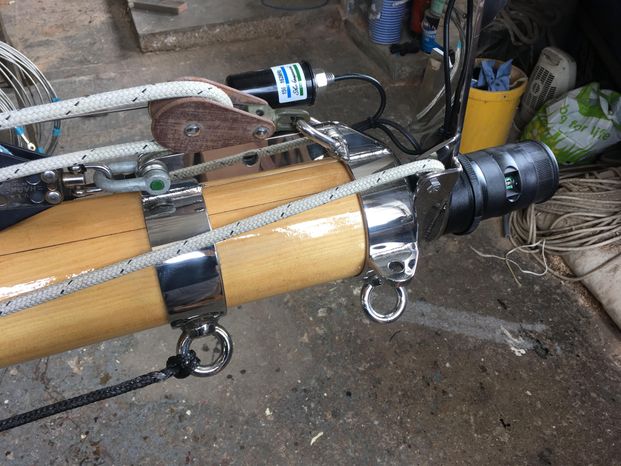

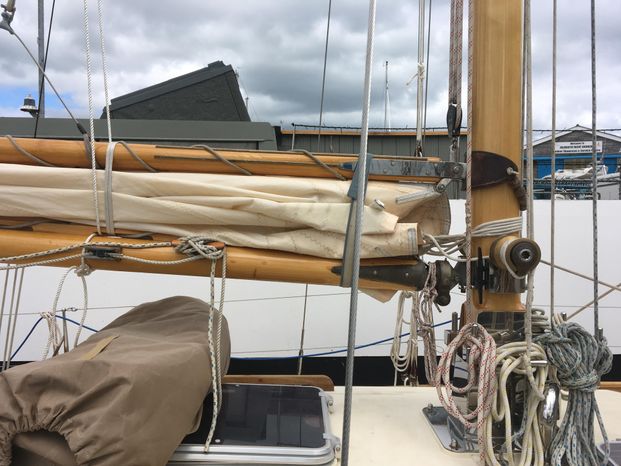

- Resorcinol glued Spruce spars with s/s collars, tangs, spreaders and gooseneck (Metre Yacht Restorations in Falmouth - 2019) mounted on heavy duty s/s coachroof tabernacle
- Lifting pine bowsprit
- Boom crutch
- S/s standing rigging (2019) with Profurl jib furling and Harken staysail reefing systems
- Braid running rigging with mostly Harken deck gear
- Antal W16 bronze S/T cockpit sheet winches (4)
- Antal W16 bronze S/T halyard winches (2) and s/s cleats on mast gooseneck fitting
- Winch handles with cockpit storage sockets (2)

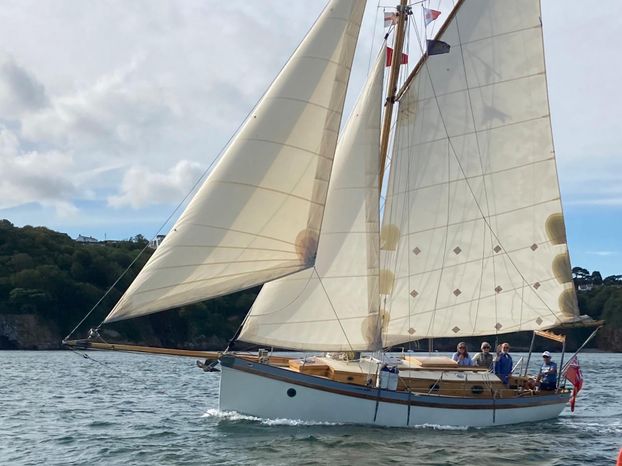

- Sail wardrobe includes 172 sq ft roller furling jib (Sanders 2022), 110 sq ft roller furling staysail (SKB), 305 sq ft slab / roller reefing mainsail (SKB) and Jackyard topsail on an aluminium spar
- Boom cover (2023)

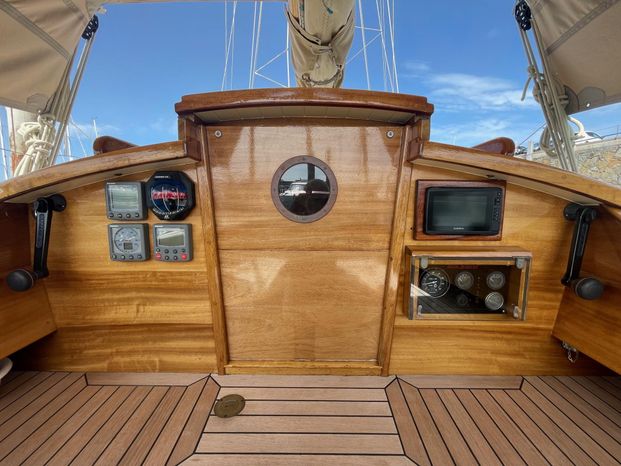

- Garmin ECOMAP Plus 70 chartplotter / sonar in cockpit (2020)
- Raymarine ST60 wind speed and direction (cockpit)
- Raymarine ST60 Tridata speed and depthsounder (cockpit)
- Raymarine ST6002 tiller pilot (cockpit)
- Icom IC-M330 DSC VHF radio in cabin (2020)
- AIS transponder (2020)
- Plastimo Contest 130 bulkhead compass
- Brass clock and barometer
- Navigation lights including chart table light and LED steaming / anchor lights (2019)

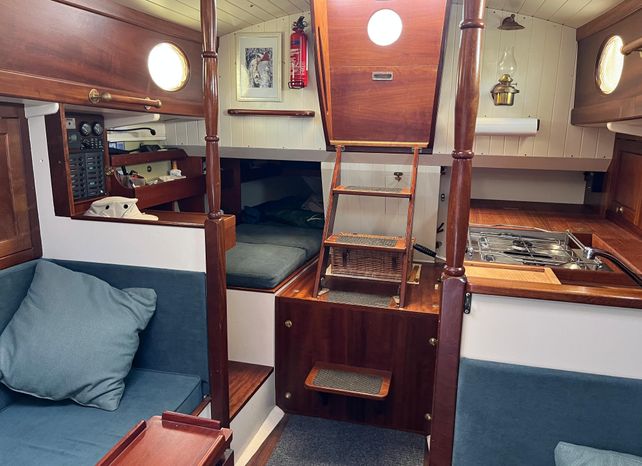

- Comfiortable accommodation for up to 5 persons in 2 beautifully fitted out cabins with 6’1” maximum headroom

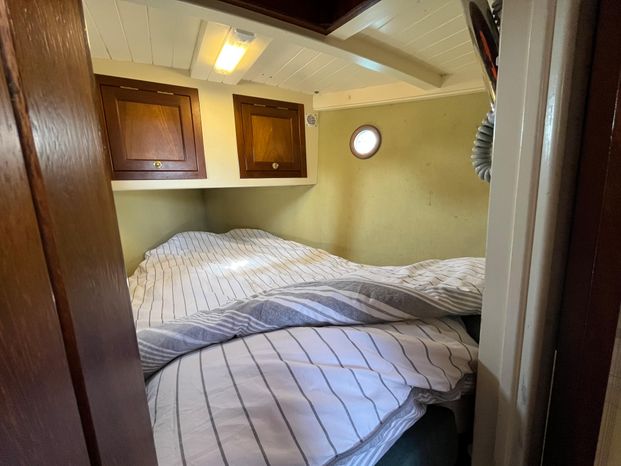

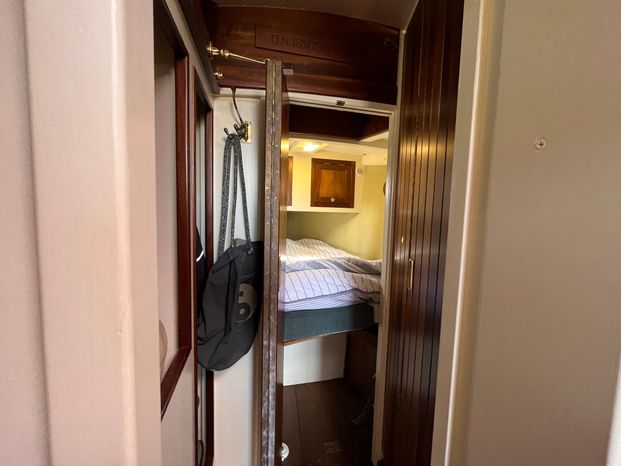

- Forward cabin with single / small double berth, folding s/s steps up to overhead deck hatch and port holes on either side

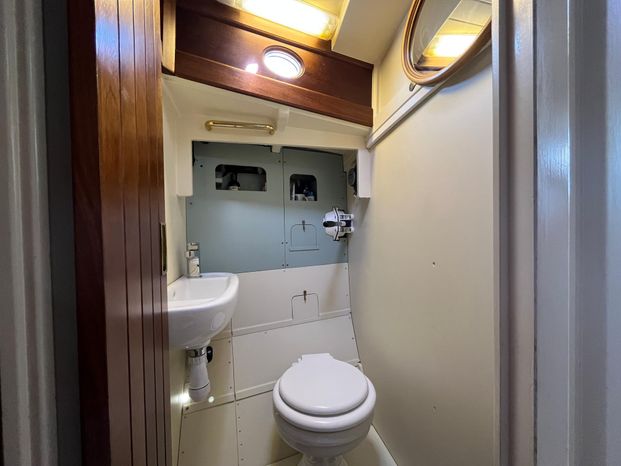

- Totally re-designed and re-built heads compartment (2019 / 2020) to starboard with Lavac marine toilet (Henderson manual pump with diverter valve for pumping out holding tank), wash hand basin, extractor fan and overhead ventilation hatch

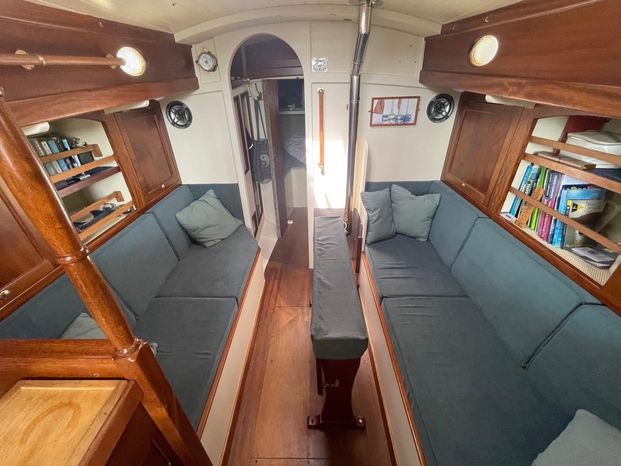

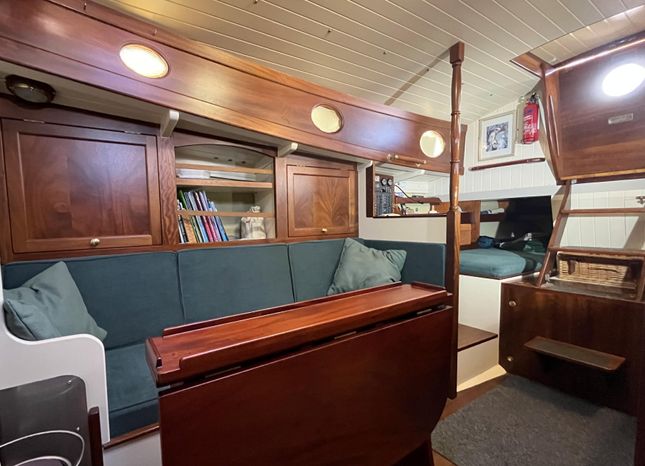

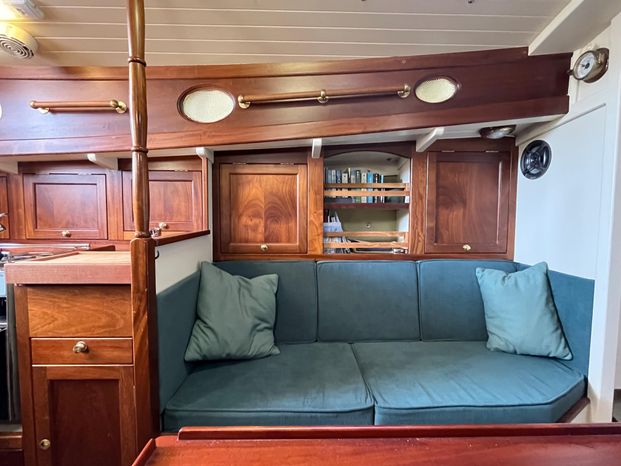

- Recently re-upholstered saloon (2021 / 2022) with settee berths on either side, folding central table and deck hatch above
- Bulkhead mounted brass oil lamp

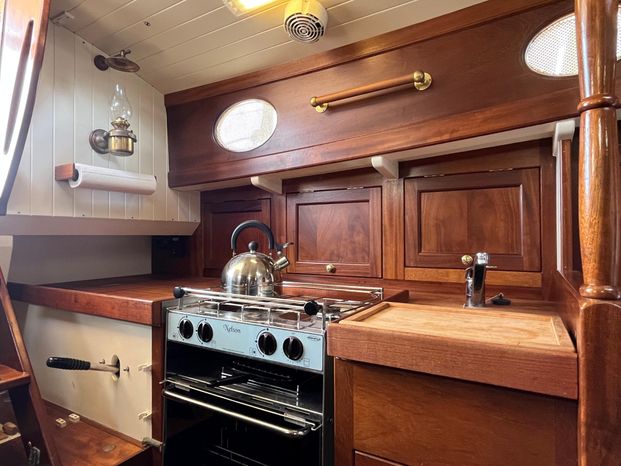

- Galley to port with teak worktop, s/s sink, Isotherm chest fridge, Nelson Spinflow 1500 gimballed 2 burner gas cooker / grill / oven and extractor fan

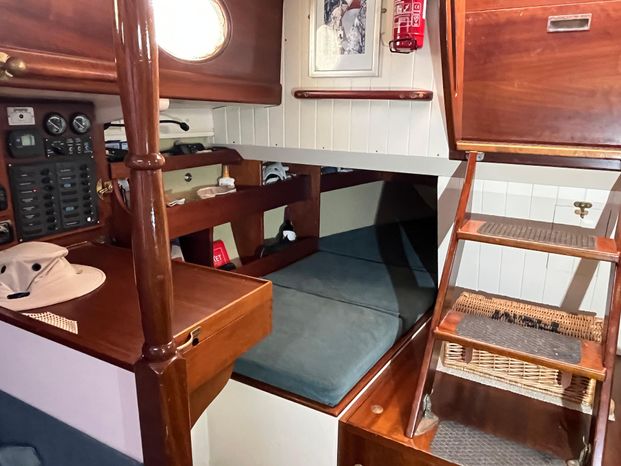

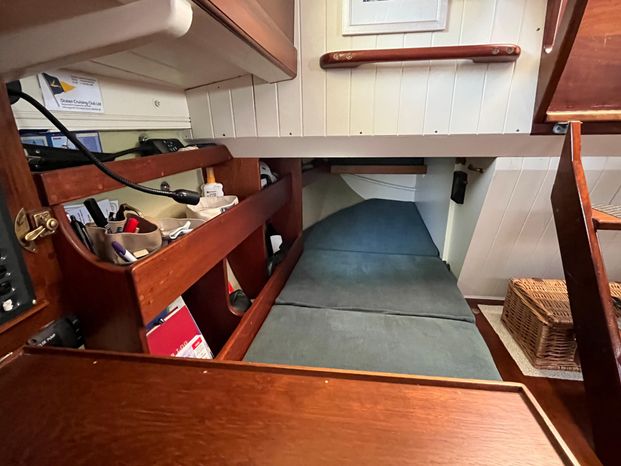

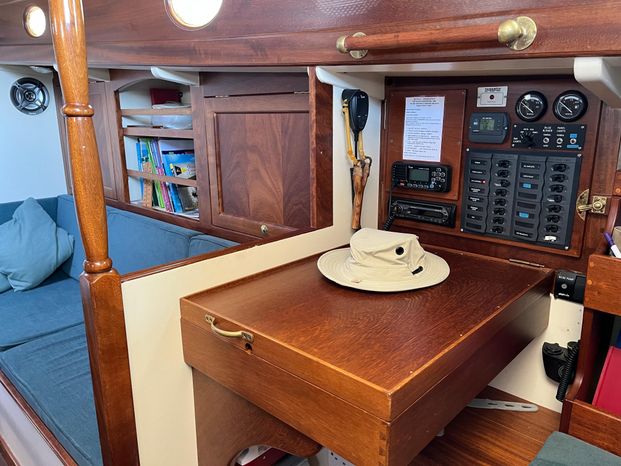

- Chart table and quarter berth opposite

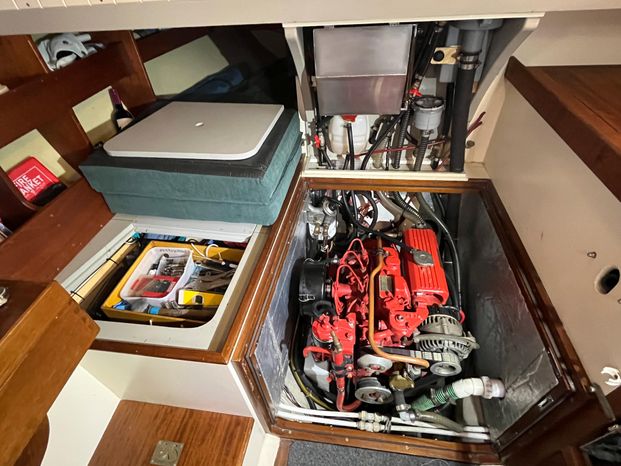

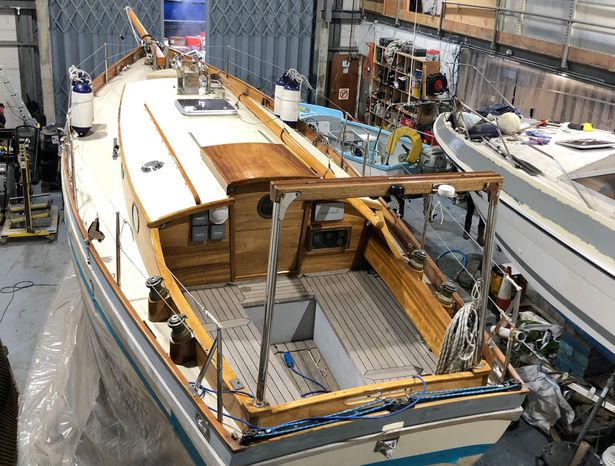

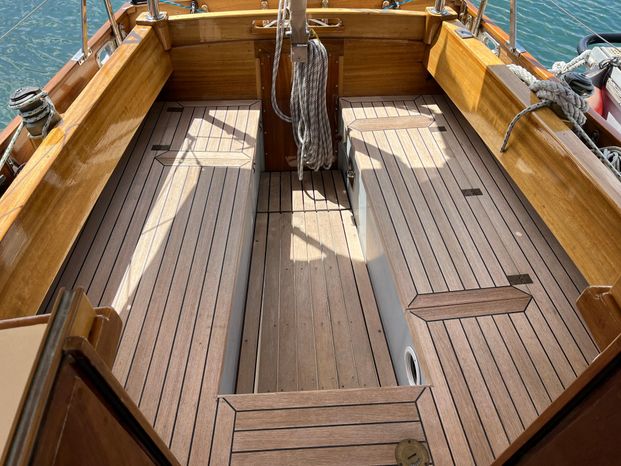

- Good access to well insulated engine compartment below companionway steps leading up to well protected teak self-draining cockpit

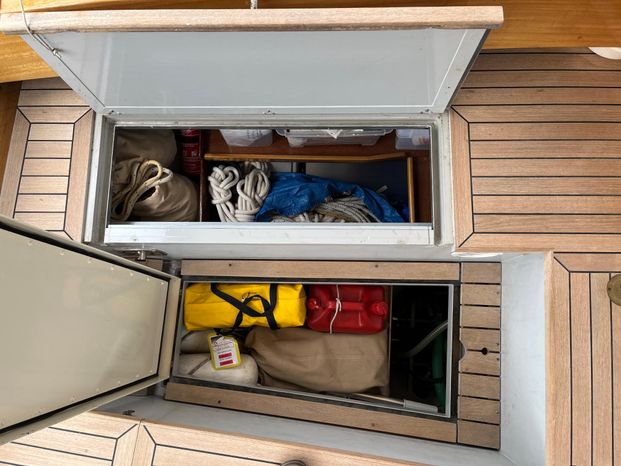

- Good stowage throughout yacht including numerous cabin lockers, cockpit lazarette, recently added storage space under cockpit sole (2021) and dedicated vented gas locker
- 4 man coastal liferaft (2022)
- Coastal flare pack
- Manual fire extinguishers (3)
- Fire blanket
- Manual bilge pump with diverter valve for pumping out galley sink

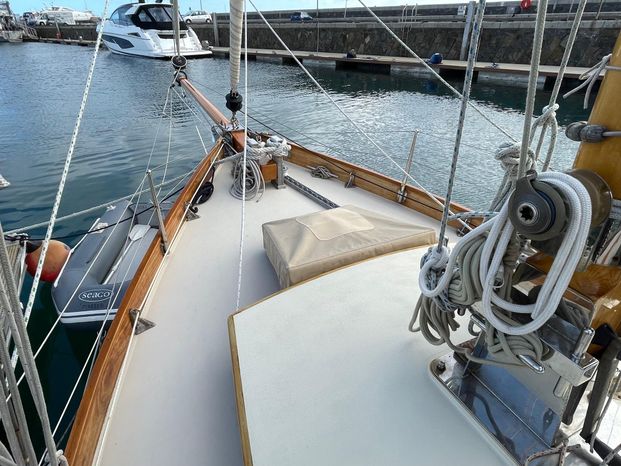

- Seago inflatable tender with oars (2020)

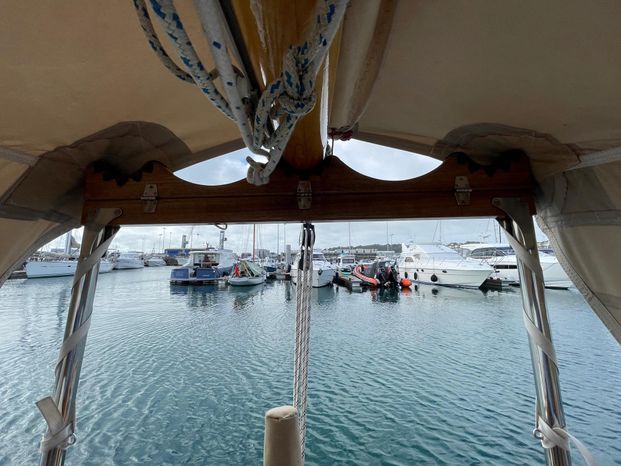

- Summer cockpit cover (2019 / 2020)
- Winter cover (2019 / 2020)
- Foredeck hatch and tiller covers
- Cabin table cover
- 20 Kg Delta anchor with s/s swivel, 70 M x 10 mm hot dipped quality galvanised chain (2021) and chain stop
- Spare anchor stored in forward cabin
- Custom made bow fitting with twin rollers and opening gate for lifting bowsprit
- Warps and fenders

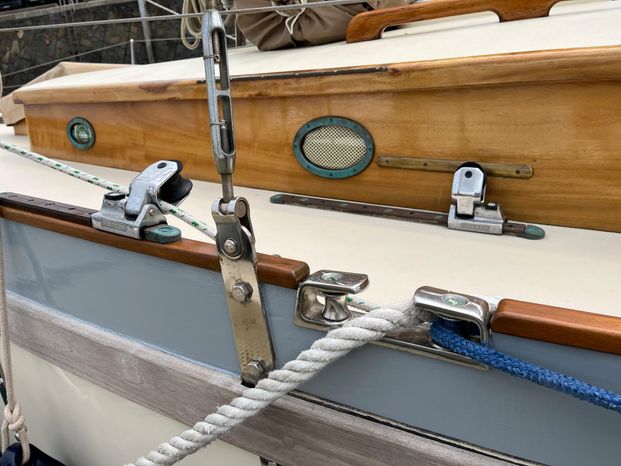

- S/s cleats and midship roller fairleads
- S/s stanchions and guardrail wires with midship gates on either side
- S/s portable boarding / swim ladder in way of midship gates
- Boathook
- Ensign staff
“As far as I understand there were initially 5 hulls produced, 2 were fitted out by ‘Tideway Boat Construction’ in Salcombe and the other three, I believe by their owners. Interestingly 2 more hulls have been built in the last 3 years as engine less Gaff Rigged open fishing boats by a charity based in Plymouth.

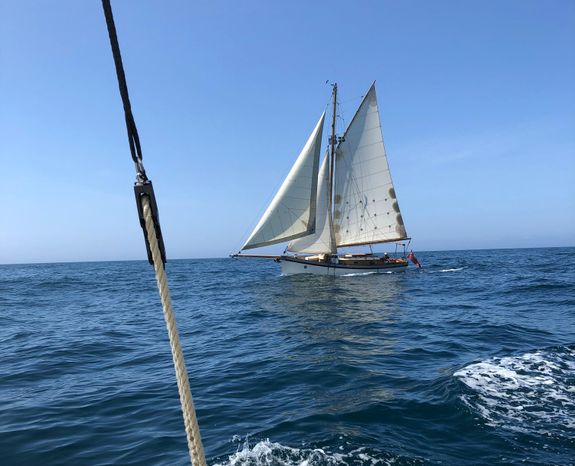

As her present owner I can vouch for her sea-kindliness and good manners both under sail or motor and wouldn’t hesitate to take her into the blue waters.
I bought her with the view to sail her to the Algarve for a couple of years or so (once more for old time sake), but Covid altered those plans as it did for many people, so instead I spent the time changing things to my own liking and the usual upgrade after 10 years. A lot of the work didn't really need doing, but I enjoy doing it, in any case, what else was there to do during lockdown? With her working boat design, many people would consider her to be a heavy boat, but that doesn't affect her sailing ability and in my view improves it, they knew a thing or two in those days, indeed she will often see off a lightweight modern yacht and frighten many others, (very satisfying), she is also not difficult to sail, I sail her mostly single handed including my annual trip from Guernsey to England to cruise up or down the coast looking up friends along the way, after all that’s what it’s all about.”
